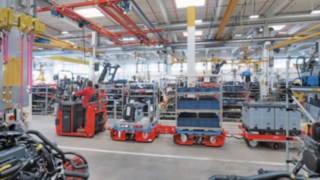

LT06 – LT10 M / LT10 W

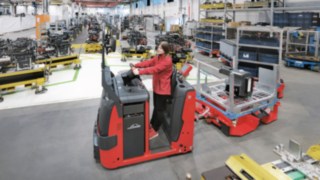

The LT06 – LT10 M / LT10 W are designed for maximum comfort. The M frames are loaded and unloaded at ground level. This relieves the operator and reduces the risk of physical strain from repeated lifting. The W frame has a sloping platform that makes it easier for the operator to insert and remove the load carriers. The loading frames lock automatically, while the unlocking mechanism is conveniently mounted at an ergonomic height and can be operated by foot. In addition, the M frame for the tugger train trailers boasts an ergonomic ejection mechanism that moves the load away from the rear toward the operator as soon as they release the lock.

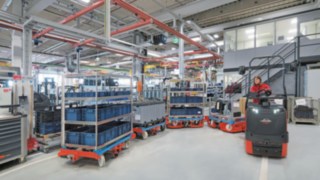

The LT06 – LT10 M / LT10 W trailers are available in two different frame variants: As an entry-level solution, the M frames are suitable for transporting lighter loads on routes with the same loading and unloading side. The W frames, however, can be loaded and unloaded from both sides, making them very flexible. The compact one-axle-design on two wheels makes the loading frames particularly manoeuvrable and enables dynamic driving manoeuvres, even in confined spaces. Thanks to the low weight of the load frames, the towing vehicle can cover distances at higher speeds. The load frame lifts and lowers automatically, meaning that loads can be handled quickly. When the operator gets into the towing vehicle, the frames are raised for transport. When they leave the truck, these are lowered again. The loading frames are equipped with smooth-running positioning aids, making the trolleys quick and easy to manoeuvre.

The LT06 – LT10 M / LT10 W offer high levels of availability with minimal maintenance. The maintenance intervals of towing vehicle and loading frame are synchronised so that maintenance work can be planned and executed efficiently. The simple frame design with a small number of parts reduces the amount of servicing required, resulting in cost-efficient maintenance. The loading frames can be converted to an electric lifting mechanism on request. Only one lift motor is required for this, which makes maintenance even easier. The mechanical locking mechanism and the tiller system are easy to service and maintain.
