0 - 1,200 (kg)
0 - 2,844 (mm)

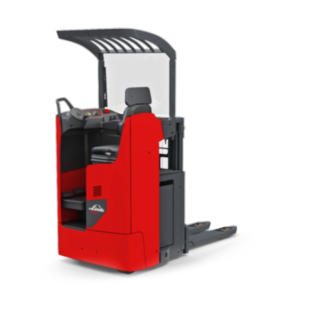

D12 RW

Comfortable double pallet stacker

Ergonomic and fast transport for exceptional handling performance

The D12 RW double pallet stacker is a fast and agile all-rounder for the simultaneous transport of two pallets of up to 1,000 kg each. Equipped with a powerful 3-kW three-phase motor, it reaches a speed of up to 12 km/h without load and 10 km/h with load. This makes it particularly suitable for medium and long distances in warehouses with a high handling capacity. It is also ideally adapted for loading and unloading trucks. An ergonomic seating position and intuitive controls allow comfortable, fatigue-free working. The wide chassis of 970 mm ensures a high degree of freedom of movement.

Characteristics

Safety

The D12 RW pallet stacker has three independent braking systems that ensure the safety of the operator and other warehouse staff when in use. The speed is automatically reduced when cornering. A four-point configuration ensures high stability and optimum traction even with maximum load. The wide chassis means that the operator is always protected within the truck contours. The high seating position offers an optimal view of the surroundings. When the fork is lowered, the lifting speed is automatically reduced. This reduces damage to the load and wear on the truck.

Three independent braking systems
Automatic speed reduction in curves
Four-point configuration for high stability
High seating position for optimum all-round visibility
Soft landing function of the fork carriage

Ergonomics

The seat position, which has been shifted by 90°, offers an excellent view of the surroundings for fatigue-free manoeuvring in both directions. The generous chassis width of 970 mm enables ergonomic working with a high degree of freedom of movement. Additional comfort when operating is ensured by the individual adjustment options for the seat, backrest and floor plate. Easily accessible controls integrated into the console makes for highly efficient operation of the D12 RW.

Lateral sitting position for fatigue-free manoeuvring
Wide chassis for high freedom of movement
Individually adjustable operator’s seat
Operating controls integrated into the console

Handling

The powerful 3-kW three-phase motor accelerates the truck to a speed of up to 12 km/h and up to 10 km/h with a load. The four-point configuration ensures maximum stability of the pallet stacker even at full speed and fully loaded. The fork or mast movements are controlled precisely and smoothly simply with the touch of a fingertip. In addition, fork and truck can be controlled simultaneously, ensuring high productivity thanks to smooth work processes.

Powerful 3-kW three-phase motor
Four-point configuration for stable operating performance
Precise, effortless fingertip control
Synchronous control of fork and truck

Service

The robust design and the durable drive unit guarantee high performance with low maintenance requirements. The multifunction display keeps the operator constantly informed, for example, via a battery discharge indicator, an operating hour metre and a fault code indicator. The CAN bus technology provides service technicians quick and easy access to all truck data.

Robust design and durable drive unit
Multifunction display with all important truck information
CAN bus technology for quick data access

Technical Data

Model	Load capacity/Load	Lift	Travel speed, with/without load	Turning radius	Battery voltage/rated capacity (5h)
D12RW	1.2 / 2.0 (t)	2344 (mm)	10 / 12 km/h	2021 (mm)	24 / 345/375 [23/205] (V)/(Ah) o. kWh

Download Datasheet

Leather seat & seat heating

Leather seats and an adjustable seat heating system increases the operator’s comfort when operating in cold storage or in cold environments.

BlueSpot™

The Linde BlueSpot™ route warning system increases safety in operation, as the LED spot makes trucks silently visible.

Load backrest

The load backrest ensures that loads cannot slip backwards and fall on the operator when the load carrier is raised.

Speed optimisation

The speed optimisation depends on the weight of the load with the load lifted.

Various mast lift heights

Different mast heights are available for the D12 RW – including special heights on request. This allows the truck to be adapted precisely to the desired application.
