- 0 - 1,200 (kg)
- 0 - 700 (mm)
- 0 - 2,800 (mm)

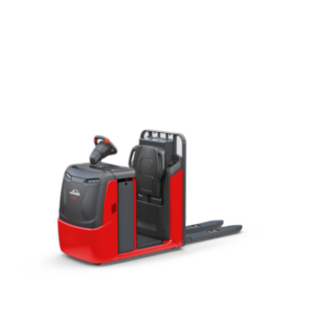

N20 C L
Comfortable Single Pallet Picking Aid
Convenient order picking with free lift
The order picker N20 C L simplifies the picking process with a single pallet in multiple ways: when without load the vehicle can accelerate up to 12 km/h (7.5 mph). On bends, speed is automatically reduced to protect operators, goods and pedestrians. Thanks to the 2.2 kW lift motor, the operator can bring the pallet to a height that is easy on the back and load it with up to 1.2 tons. Since the vehicle is easily accessible and has a pedestrian function on both sides, the operator saves unnecessary travel. Non-slip handles and easy-to-understand operation also ensure higher handling performance. For orders on the first and second shelf levels, the N20 C L can be equipped with a lifting platform. A non-slip floor mat provides firm footing at any height.
Characteristics
Safety
Efficient order picking requires a perfected safety system. All outer edges of the robust steel chassis are rounded and lowered so that the operator cannot pinch their feet. The construction of the mast and lifting cylinder is also designed to minimise the risk of injury. The N20 C L's generous all-round visibility means that the operator always has a good view of the forks and their surroundings. This is complemented by the optional panoramic mirror at the front of the vehicle. To prevent collisions, the order picker automatically slows its speed when turning a corner and increases its braking power with heavy loads. If the vehicle registers an unoccupied operator's platform or the emergency button is pressed, it stops immediately. For even more visibility in the aisles, front LEDs and Linde BlueSpot™ are available as options.
- Rounded steel chassis
- Unobstructed panoramic view
- Speed reduction on bends
- Stop when operator's platform is unoccupied
- Emergency button
Ergonomics
Thanks to the free lift, the N20 C L enables ergonomic order picking at operator height. Even heavy goods can be placed effortlessly on the pallet. Low access on both sides ensures a safe, dynamic order picking cycle. The operator can also comfortably control their vehicle from both sides using the pedestrian function. Both the steering column and the backrest are individually adjustable and can be adapted to the respective operator. The ergonomic steering column, automatic drive centring and a cushioned platform that compensates for uneven ground ensure a pleasant driving experience.
- Back-friendly loading at operator height
- Generous access with low entry height
- Adjustable backrest and steering column
- Damped platform with rubber padding
Handling
The N20 C L quickly reaches its top speed of 12 km/h (7.5 mph) thanks to the 3 kW three-phase AC motor. Even when loaded, it accelerates to 9 km/h (5.6 mph) and brakes automatically when cornering. The Linde on-board charger reduces the effort required to charge the battery. With the optional lithium-ion battery, the operator can conveniently use work breaks to charge the order picker between tasks. The adjustable Linde steering wheel offers intuitive operation. Thanks to the clearly arranged controls, all mast and operating functions can also be safely controlled with one hand.. The operator's platform is also equipped with a storage area, a bottle holder and a paper compartment.
- Powerful 3 kW three-phase motor
- Linde on-board charger
- Intuitive and ergonomically operable Linde steering wheel
- Many storage options
Service
The maintenance effort for the N20 C L is low with a running time of about 1000 operating hours without a service check. The three-phase AC technology is even completely maintenance-free. Thanks to the CAN bus connection, the technician can quickly and easily read out all relevant service information. Access to all maintenance components is effortless. The battery cover can also be opened easily to access the diagnosis plug.
- 1000 operating hours without service check
- Maintenance-free three-phase electric motor
- CAN bus connection
- Easily accessible service components
Videos & Images
Technical Data
| Model | Load capacity/Load | Lift | Travel speed, with/without load | Turning radius | Battery voltage/rated capacity (5h) |
|---|---|---|---|---|---|
| N20 C L | 1.2 (t) | 700 (mm) | 9 / 12 km/h | 2007 (mm) | 24 / 420/465 (V)/(Ah) o. kWh |
Optional Equipment
-
Semi-automated option
-
Liftable operator's platform
-
Fleet management
-
Front LEDs
-
Cushioned platform
-
Load backrest
-
Linde BlueSpot™
-
Lithium-ion technology
-
Inching controls
-
Panoramic front mirror
-
Lateral battery change
-
Accident monitoring
-
Slowed lowering
-
Access control
Semi-automated option
The two semi-automated (SA) operating modes shorten walking distances and reduce the need for constant stepping on and off the truck since the order picker automatically follows the operator or drives ahead. This significantly increases the efficiency of horizontal order picking.
Liftable operator's platform
The operator platform can be lifted to allow occasional order picking at the first and second rack levels up to 2.8 metres picking height.
Fleet management
The Fleet Management connect solution from Linde allows you to analyse the use of the entire fleet of vehicles in order to subsequently optimise the service or capacity utilisation of the truck fleet, amongst other things.
Front LEDs
The two LED headlights are located at the front and have a high brightness. They are waterproof and dustproof.
Cushioned platform
The pneumatically-cushioned construction reduces vibrations caused by uneven road surfaces.
Load backrest
An additional protection for the operator and load is the load backrest, which can be adapted to the height of the load.
Linde BlueSpot™
The Linde BlueSpot™ route warning system increases safety in operation, as the LED spot makes trucks silently visible.
Lithium-ion technology
With Linde’s innovative lithium-ion batteries, trucks can be recharged in a much shorter time and intermediately charged during operation.
Inching controls
There are pushbuttons on both sides of the vehicle, which the operator uses to operate the order picker from the outside, walking alongside at the same time.
Panoramic front mirror
A large mirror at the front of the vehicle provides a good all-round view and thus increases safety for the operator, load and pedestrians.
Lateral battery change
The lateral battery removal, by means of roller bearings, enables a quick change, especially for use in multi-shift applications.
Accident monitoring
Whether driving errors, uneven surfaces or improper vehicle use, a shock sensor registers shocks. The evaluation of the data via the fleet management software provides information on the cause of damage and accidents.
Slowed lowering
When the fork is fully loaded, the lowering speed is reduced. This provides additional protection against damage to the goods.
Access control
Access control via the connect fleet management system ensures that vehicles are only used by authorised persons. The operator must identify him or herself with a PIN or RFID card before starting.
