H20–H35
Robust performer with all-round visibility
Networked and easy to service for maximum efficiency
The IC truck H20–H35 is powerful, easy to operate, robust, low-maintenance and versatile. The forklift for loads between 2000 and 3500 kilograms is particularly well-suited for high loads in multi-shift operation and assignments in even the harshest outdoor conditions. Hydrostatic drive, dual pedal control, Linde Load Control and optimal visibility ensure precise interaction between man and machine. Design details combined with intelligent assistance systems guarantee the highest possible levels of safety. The H20–H35 can be integrated into software systems. For example, for fleet management, via wireless data transmission. The truck fulfils the latest EU 5 (2016/1627) exhaust emission regulations and it even undercuts the required emissions massively.
Characteristics
Safety
Slim, asymmetrical mast profiles, narrow A-pillars, a spacious and well-lit operator’s area and the lowered front plate ensure outstanding visibility. The roof is equipped with particularly narrow cross struts or an optional armoured glass roof, to ensure good upward visibility. The truck’s low centre of gravity and a high-mounted steering axle ensure good stability when cornering. Fitted as a standard safety feature, the Linde Curve Assist provides support when cornering, while Linde Load Assist reduces the risk of tipping and loading accidents. The trucks can also be fitted with: LED Stripes, Linde VertiLight, Linde TruckSpot, Linde BlueSpot™ light and warning solutions, the Linde Safety Pilot and Linde Safety Guard assistance systems.
- Outstanding visibility of the load and environment
- Linde Curve Assist reduces the speed when cornering
- Lift loads safely with Linde Load Assist
- Multiple optional light and warning solutions
Ergonomics
The H20–H35 offers an ergonomic and intuitively organised operating concept. The steering wheel, dual pedals and joysticks for the Linde Load Control, which is integrated into the armrest, can be operated with minimal movement required. In order to protect the operator against impacts and vibrations, the drive and steering axles and the mast are decoupled from the frame and chassis with rubber bearings. A large selection of ergonomic seats is available to provide active protection against postural injuries. Features like air suspension, lumbar support, seat heating and seat ventilation provide additional comfort. The 3.5-inch display gives the operator a quick overview of important information about the truck.
- Intuitive operating concept for fatigue-free working
- Decoupled operator’s workstation protects against vibrations
- Optimal comfort thanks to wide range of seat variants
- Standard 3.5-inch display
Handling
The interaction of hydrostatic drive, industrial engine, operating concept, ergonomic design and optimised all-round view ensures productive load handling. Dual pedal control and the Linde Load control joysticks guarantee precise control of all driving and mast movements. There is also the option of interconnecting frequently used functions via the freely programmable buttons in the armrest. The construction of the mast profiles and the overhead tilt cylinders ensure torsional stability and high residual load capacities for large lifting heights. The Linde Hydrostat and industrial engine minimise fuel consumption and maintenance effort, thereby increasing availability and reducing operating costs in the process.
- Precise control of hydraulic functions with Linde Load Control
- Dual pedal control for fast reversing
- High residual load capacities thanks to overhead tilt cylinders
- Optional individually programmable multi-function buttons
Service
The robust construction of the H20–H35, as well as wear-free and maintenance-free components like the hydrostatic drive system or the lubrication-free tilt cylinders, ensure high operational availability. The hydraulic oil intake filter and coolant pump do not need to be replaced; the hydraulic oil only needs to be changed after 6000 operating hours. The powerful and robust industrial engine boasts maintenance-free spur gears, so there's no need to replace the toothed belt as is the case with car engines. The Engine Protection System (EPS) provides additional damage protection as do the Truck Health Monitoring sensors, especially in extreme outdoor temperatures. The transverse installation of the engine means the service openings are extra-large, so components that require maintenance can be accessed and replaced easily.
- Robust truck construction
- Long maintenance intervals thanks to zero-wear components
- Hydraulic oil change after 6000 operating hours
- Engine Protection System (EPS) protects against engine damage
- Servicing is easy thanks to generous service panels
Videos & Images
Technical Data
| Model | Load capacity/Load | Load centre distance | Wheelbase | Aisle width with pallet 800 x 1200 along forks | Travel speed, with/without load |
|---|---|---|---|---|---|
| H20/600CNG | 2.0 (t) | 600 (mm) | 1865 (mm) | 4189 (mm) | 22 / 22 km/h |
| H20/600CNG Container | 2.0 (t) | 600 (mm) | 1865 (mm) | 4189 (mm) | 22 / 22 km/h |
| H20/600D | 2.0 (t) | 600 (mm) | 1865 (mm) | 4189 (mm) | 22 / 22 km/h |
| H20/600D Container | 2.0 (t) | 600 (mm) | 1865 (mm) | 4189 (mm) | 22 / 22 km/h |
| H20/600T | 2.0 (t) | 600 (mm) | 1865 (mm) | 4189 (mm) | 22 / 22 km/h |
| H20/600T Container | 2.0 (t) | 600 (mm) | 1865 (mm) | 4189 (mm) | 22 / 22 km/h |
| H25/600CNG | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600CNG Container | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600CNG Beverage | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600D | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600D Container | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600D Beverage | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600T | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600T Container | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25/600T Beverage | 2.5 (t) | 600 (mm) | 1905 (mm) | 4271 (mm) | 22 / 22 km/h |
| H25CNG | 2.5 (t) | 500 (mm) | 1905 (mm) | 4231 (mm) | 22 / 22 km/h |
| H25CNG Container | 2.5 (t) | 500 (mm) | 1905 (mm) | 4231 (mm) | 22 / 22 km/h |
| H25D | 2.5 (t) | 500 (mm) | 1905 (mm) | 4231 (mm) | 22 / 22 km/h |
| H25D Container | 2.5 (t) | 500 (mm) | 1905 (mm) | 4231 (mm) | 22 / 22 km/h |
| H25T | 2.5 (t) | 500 (mm) | 1905 (mm) | 4231 (mm) | 22 / 22 km/h |
| H25T Container | 2.5 (t) | 500 (mm) | 1905 (mm) | 4231 (mm) | 22 / 22 km/h |
| H30CNG | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30CNG Container | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30CNG Beverage | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30D | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30D Container | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30D Beverage | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30T | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30T Container | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H30T Beverage | 3.0 (t) | 500 (mm) | 1930 (mm) | 4290 (mm) | 22 / 22 km/h |
| H35CNG | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35CNG Container | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35CNG Beverage | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35D | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35D Container | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35D Beverage | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35T | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35T Container | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
| H35T Beverage | 3.5 (t) | 500 (mm) | 1965 (mm) | 4332 (mm) | 22 / 22 km/h |
Optional Equipment
-
Linde Steer Control
-
Linde Safety Pilot
-

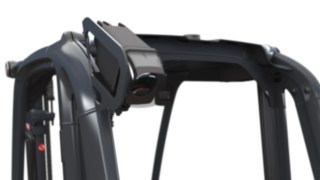

Visual warning systems
-
Linde Safety Guard
-
Full cabin
-
Seat options
-
Load weight indicator
-
Air-conditioning* and heating system
-
Container version
-
Light solutions
-
Linde Speed Assist
-
Multi-function display
-
Linde fleet management
Linde Steer Control
The innovative Linde Steer Control concept from Linde Material Handling replaces the classic steering wheel with a mini steering wheel or joystick, increasing the truck’s ergonomics, precision and safety.
Linde Safety Pilot
Tipping accidents with the counterbalance forklift trucks can be largely avoided by using the Safety Pilot from Linde Material Handling.
Linde Safety Guard
The innovative Safety Guard assistance system from Linde warns truck operators and pedestrians of acute danger in the immediate vicinity of the trucks using acoustic and light signals.
Full cabin
The comfort cabin protects the operator when working outdoors and provides outstanding all-round visibility of the load and the working environment thanks to its armoured glass roof and large-scale glass doors.
Seat options
A large selection of seats ensures additional comfort and active protection against postural injuries with functions like air suspension, lumbar support, seat heating and seat ventilation.
Load weight indicator
This optional function shows the operator the current load weight on the fork in the display.
Air-conditioning* and heating system
The powerful air-conditioning system with integrated heating and pollen filter guarantees a comfortable working environment in the cab all year round, while also preventing windows from fogging up.
* contains fluorinated hydrocarbons
Container version
Despite the truck being just 2220 mm high, it still allows for an ergonomic work space with ample headroom. These dimensions are vital for container terminal applications and other indoor areas with low clearance heights.
Light solutions
The Linde LED Stripes: two-colour light strips use white light to illuminate the truck’s direction of travel. With its semi-circular design, the Linde VertiLight evenly illuminates the working area.
Linde Speed Assist
The Linde Speed Assist operator assistance system automatically adjusts the truck’s top speed to the environment and the driving situation.
Multi-function display
In addition to truck information, the 7-inch display can also show the display for the Linde Safety Pilot or images from the mast or reverse cameras. The screen layout and displays can be individually customised.
Linde fleet management
Linde’s connect fleet management system can be used to manage your truck fleet. From maintenance scheduling to documentation of the maintenance and repair history through to access control.
