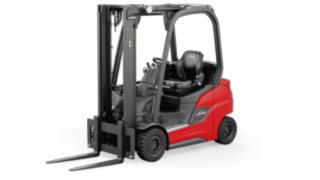

X20 – X35

The spacious and comfortable workspace for the operator and the ergonomic seat versions ensure an optimal operating experience and combat tension and exhaustion. Thanks to the wide field of view, the operator can easily keep both the load and the surrounding area in sight at all times. The truck functions can be operated with little physical effort since all of the central control elements are close at hand around the operator. Even on uneven floors, the ride is comfortable and even. The chassis is separate from the drive axle through an elastomer ring bearing and from the mast and steering axle by additional bearings, so the operator feels significantly less vibration and jolting. This also reduces noise, causing less overall physical strain on the operator and contributing to higher handling capacities.

As the new electric high performers, the X20 – X35 forklifts can be used for the most demanding applications, even on uneven floor surfaces. This is made possible by the wheelbase, which is long for an electric forklift and the large tyres, together with the vibration-free drive axle. Neither dust and dirt nor steep ramps, long distances or regular heavy loads and high lifting will push these new electric forklift trucks to their limits. The key to all of this is the new synchronous reluctance motor with permanent magnets (SRM+), together with an innovative water cooling system that keeps the power modules within the ideal temperature range. This ensures a consistently high performance even in extremely demanding multi-shift operation. In addition, the top-mounted tilt cylinder, in combination with the torsion-resistant mast design, offers a high residual load capacity and safe handling of loads of between 2 –3.5 tonnes, even at considerable lifting heights.

The operator can view all of the important information –such as remaining battery levels, warning lights and operating hours – at a glance from the 3.5-inch display, fitted as standard. Text information on the display guides the operator through simple maintenance processes. Firmware updates and fault diagnosis can be carried out remotely. This reduces the number of service operations and hence reduces servicing costs. Service and repair intervals are calculated on the basis of constantly updated operating hours. Wear and any damage that occurs are identified at an early stage by remote diagnosis. The temperature sensor integrated as standard, which continuously analyses measurements such as oil temperature in relation to ambient temperature, is one of the elements that makes this possible. Serious consequential damage is thus avoided. The mast and operator’s workspace are modular assemblies that can be replaced quickly and easily, reducing the downtime required for repairs.
