The innovative Linde Steer Control concept

The revolution of forklift control
The innovative Linde Steer Control concept from Linde Material Handling

For efficient logistics processes and maximum handling performance, the smooth interaction between operator and forklift truck plays an increasingly important role. In addition to the truck’s performance, it is above all operating comfort and intuitive operability that determine how quickly and efficiently transport and warehouse tasks can be mastered. The revolutionary Linde Steer Control concept from Linde Material Handling replaces the classic steering wheel and thus achieves a new level of ergonomics, user-friendliness and operating pleasure.

Forklift control: The interface between man and machine

When developing its forklifts, Linde has always placed particular emphasis on the efficient interaction between operator and truck. The design of the operator’s workplace plays a central role. It should offer maximum driving and operating comfort while minimising physical strain. The truck control system is particularly important in this respect. Linde trucks are therefore equipped with a proven operating system comprising dual pedal control and Linde Load Control,

Linde Steer Control is available for the following trucks:

which makes the trucks easy, precise and intuitive to operate.

With Linde Steer Control, Linde is now taking the next logical step towards an even more comprehensive integration of operator and truck. The ergonomic benefits of this innovative concept are particularly significant for heavy users, who spend the majority of their shifts working on a forklift truck.

Full control with the Linde Steer Control joystick from Linde Material Handling.

Linde Steer Control: full control

Linde Steer Control breaks completely new ground in forklift steering. The innovative concept dispenses with the traditional steering wheel and replaces it with either a mini-wheel or a joystick integrated into an additional armrest on the left-hand side. The associated elimination of the steering column and the significant reduction in the required steering movements offer several clear advantages, not least the reduced physical strain on the operator and an improved view of the fork tips. For maximum precision in all movements, Linde Steer Control automatically adjusts the sensitivity of its steering elements to the truck speed. This means that the truck reacts differently to the same hand movement depending on the situation: the faster the truck travels, the smaller the steering deflection of the wheels. The slower the operating speed, the greater the steering deflection.

The right control for the job: Mini-wheel or joystick?

Linde offers two variants of the Linde Steer Control to suit the different applications of a forklift truck. Mini-wheel and joystick each have their own advantages depending on the application:

Mini-wheel

In its basic operation, the mini-wheel is similar to the classic steering wheel. Thanks to this similarity, the mini-wheel has a significantly faster learning curve for first-time users than the joystick. For the usual everyday applications of a forklift, from operating and manoeuvring to storage and retrieval, the mini-wheel is the optimal choice for the average user and is therefore recommended as the standard design.

Joystick

The joystick shows its strengths under special operating conditions. It enables fast and sharp direction changes, which is an advantage in tight spaces and when frequently operating short, winding routes. When

the joystick is released, the steering wheels automatically return to the straight-ahead position. This is especially useful when the operator frequently has to enter long, narrow aisles. The automatic straight-ahead position also offers advantages when starting or pushing the load in a straight line, as is often required in block storage and beverage warehouses or in paper recycling.

Becoming one with the truck

Linde Steer Control complements Linde’s proven operating concept comprising dual pedal control and Linde Load Control. Together, the three control components give the operator the feeling of being completely at one with the truck while working. The dual pedal control enables smooth acceleration and fast direction changes. With their right hand, the operator uses the Linde Load Control, which controls all essential mast functions. With their left hand, they can steer the truck in all directions using the Linde Steer Control.

Particularly beneficial for frequent users

Thanks to the reduced range of movement of the control arm, Linde Steer Control brings significant ergonomic improvements. Especially for intensive applications, where operators spend several hours at a time on the truck, this reduced physical strain is of great value. The improved ergonomics and ease of operation also help to increase overall productivity. On the one hand, by enabling operators to work longer without discomfort and with greater concentration. On the other hand, by reducing the absenteeism rate due to long-term physical injuries.

Mini-wheel on the Linde Steer Control

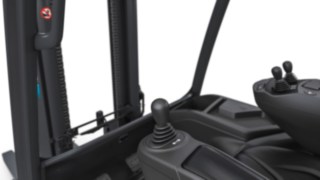

Linde Steer Control with joystick
E30 electric forklift from Linde Material Handling with Linde Steer Control
Mini-wheel on the Linde Steer Control
Linde Steer Control with joystick
E30 electric forklift from Linde Material Handling with Linde Steer Control

A completely new operating experience

Linde Steer Control optimises the ergonomic features of the truck and reduces the physical strain on the operator. The ergonomic benefits include:

Reduced arm movements

By dispensing with the classic steering wheel and integrating the truck controls into the additional armrest, the operator’s forearm rests in a relaxed position during the entire shift. All manoeuvres are controlled exclusively by slight movements of the hand. The minimal range of motion of the arm relieves the strain on the shoulder and elbow in particular, which noticeably increases operating comfort.

Less fatigue

The significantly reduced arm movements when controlling the forklift prevent fatigue and one-sided strain on the steering arm. This is particularly noticeable for intensive users who spend the majority of their working time on the forklift. The physical strain caused by frequent manoeuvring is also kept to a minimum. Irrespective of the task at hand, operators can work with concentration and without distraction throughout their shift and maintain their handling performance at a consistently high level.

Reduced mental load

Since Linde Steer Control keeps the necessary steering movements to a minimum, the operator can concentrate completely on the truck’s manoeuvre.

Ergonomics study: fewer movements, less strain

In order to scientifically prove the ergonomic advantages of Linde Steer Control, in 2022 Linde conducted a user study together with the Institute for Automotive Engineering at RWTH Aachen University and fka GmbH involving 24 test operators, most of whom also operate forklifts in their day-to-day work. The results of the study point to clear advantages of the mini-wheel and joystick. Motion analyses clearly show that both variants cause less movement of the steering arm compared to the conventional Linde steering wheel.

For the study, the operators completed two identical driving courses involving typical operating manoeuvres such as driving straight ahead, winding passages, manoeuvring, and picking up, setting down and stacking goods. To determine the range of motion of the shoulder, elbow and wrist, the upper body and arms were recorded with a special camera and analysed. The result: the shoulder is moved 25% less, the elbow as much as 45% less. This significantly reduces the strain on the shoulder and elbow joints, as well as on the muscles all the way up to the neck.

The results of the motion analysis are consistent with the subjective operating experience. For example, the operators stated that the perceived strain on their shoulders and arms was significantly lower when using the mini-wheel and joystick compared to the Linde steering wheel.

Optimised view with Linde Steer Control from Linde Material Handling

Visibility and safety

Linde Steer Control makes the classic steering wheel obsolete. This eliminates the need for a steering column and improves the visibility through the windshield to the fork tips. This, in turn, makes it easier for the operator to pick up loads standing on the ground.

The control system of the future: Safety thanks to steer-by-wire technology

Linde Steer Control is based on steer-by-wire technology, in which the operator’s steering commands are converted into electrical signals and passed on to the hydraulic control elements. This allows the truck’s wheels to be steered even though the steering element is no longer mechanically connected to the steering axle. For Steer Control, Linde has developed an innovative safety concept that ensures the fail-safe operation of the truck control system under all circumstances, despite the lack of a mechanical connection.
